Strangis Fountain
The project is to put a new copper fountain on the side of the Chimney in a roof garden/terrace.
progress on the fountain sculpture

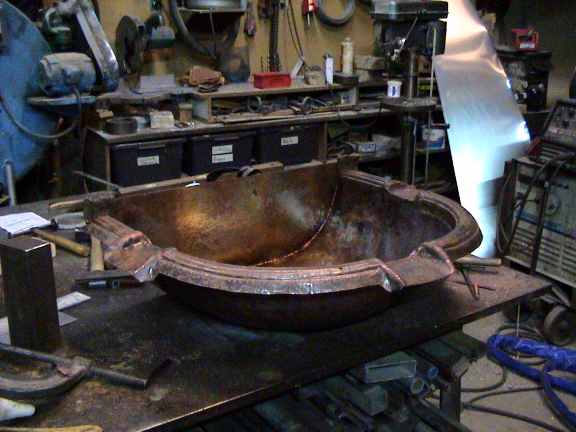

Upper pan edges defined and trimmed to size, spillways trimmed, leveled and
roughed in.
|

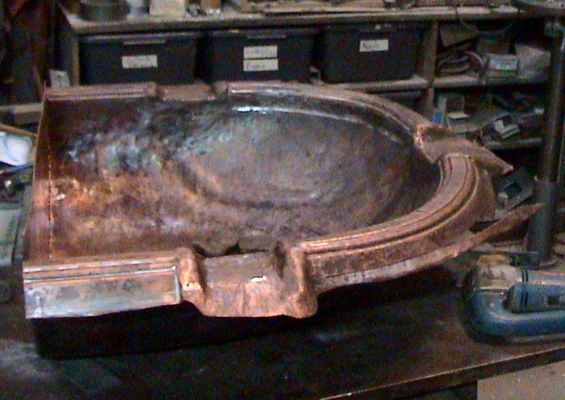

trimming the edge of the pan.

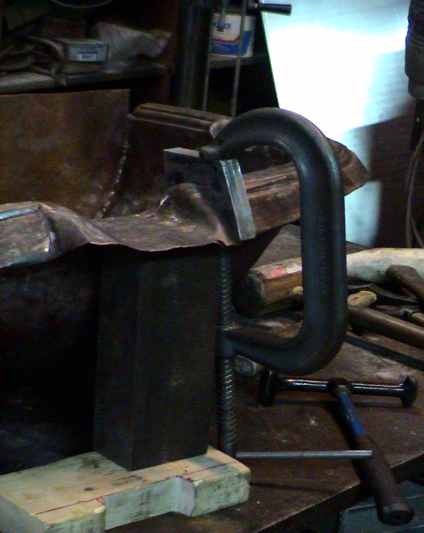

Using the forming die as a clamp to hold the edge while truing up the spillway.

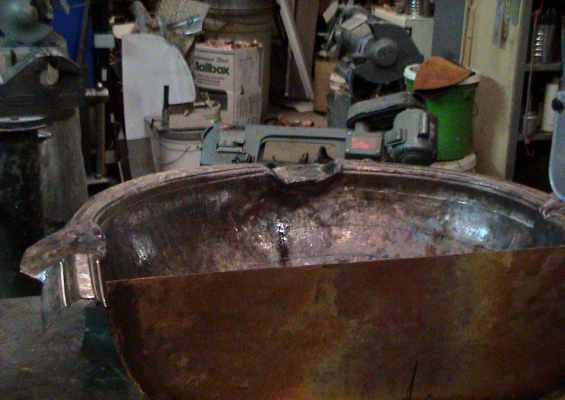

Initial pass with detailing die made some shape discrepencies more noticable.
This required rework.
The bad curve was reformed and planished, annealed, replanished, annealled and
then run over with the die again.

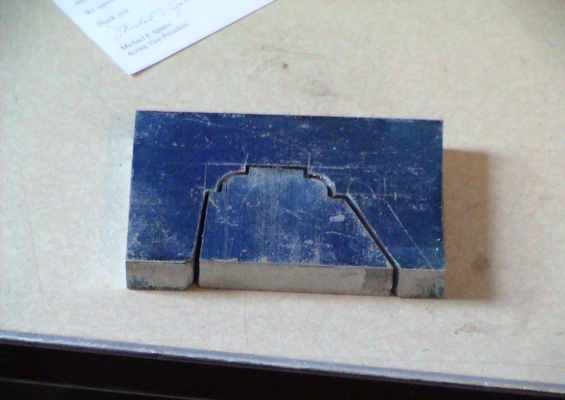

Pullmax die for the edge of the pan..

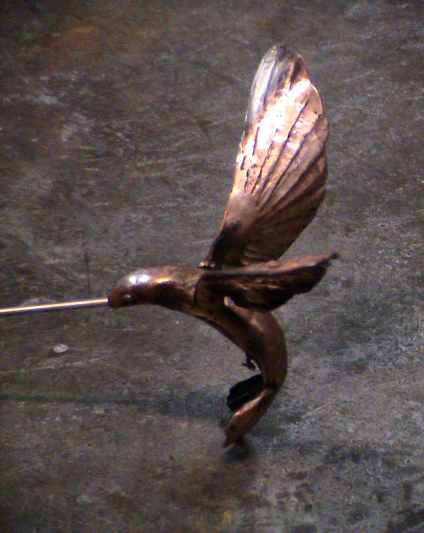

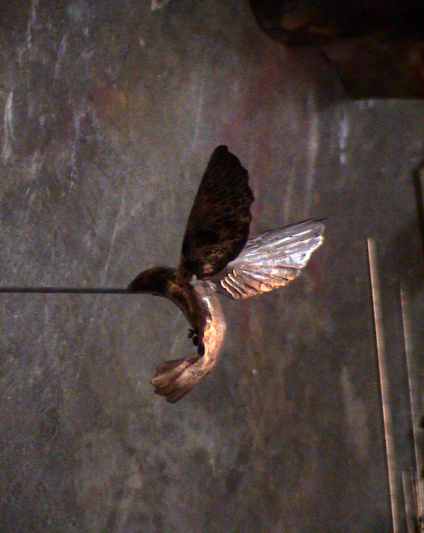

shots of the Hummingbird part of the weathervane.
welding rod stand in for eventual forged bill/flower stamen/flower stem

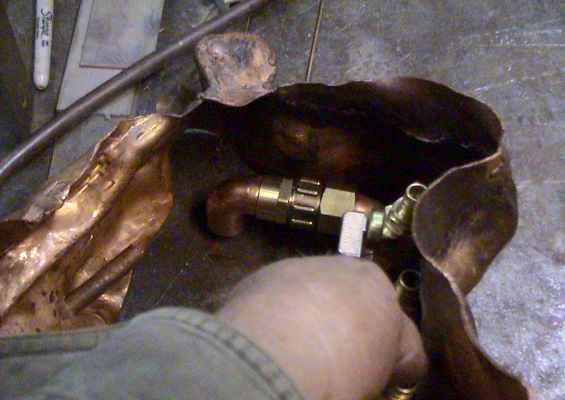

Initial fitting of the valve manifold with custom altered union fitting.
