August 2005
Projects for Beverly MarkisCustom Plumbing for TubThe project is to make new plumbing fixtures to fit a hand made alabaster tub and also fit in with the other chosen fixtures in the room.
|
|
The Part to be made

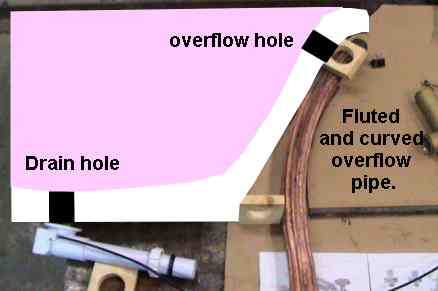

A shot of the edge template and formed pipe next to a sketch of the tub.
|
Progress Shot

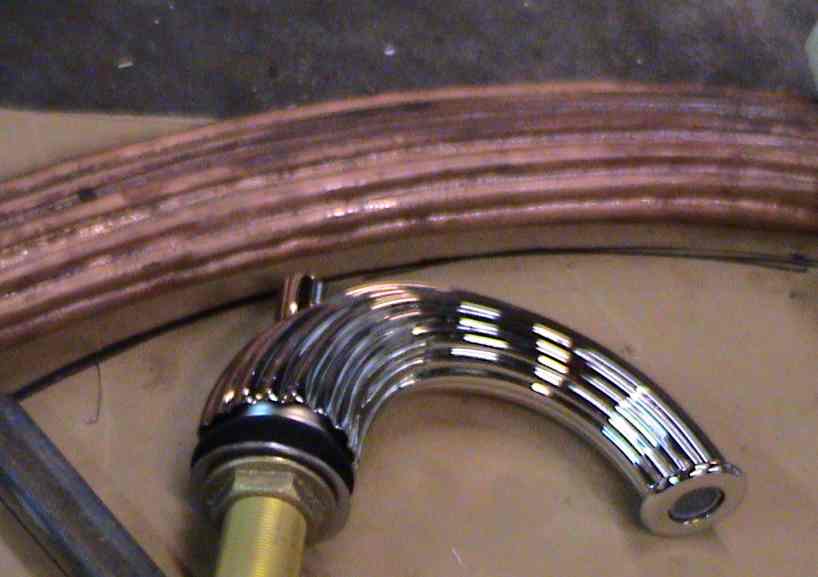

Comparing the flutes on the faucet to the flutes on the drain.
The drain flutes are still rough, raw copper. They need to be tuned, sanded, polished and plated.
Compare, the progress shots of "Pig Tut"
They should clean up nicely.
The Build

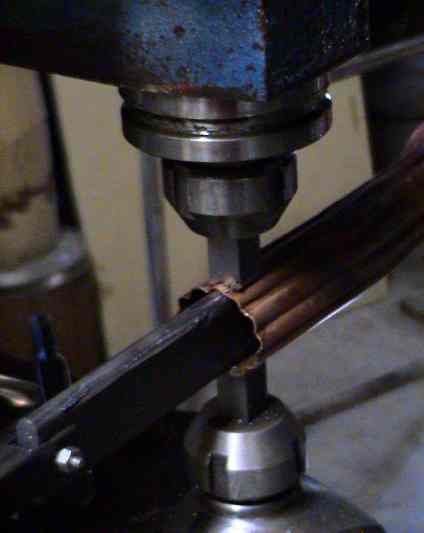

This is the setup for forming the fluted drain pipe.

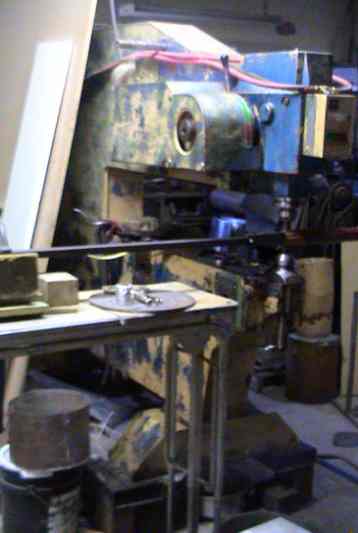

This is the Machine that holds the forming dies and pounds out the form. The tube tied to the table supports the little plastic forming mandrel inside the drain pipe.

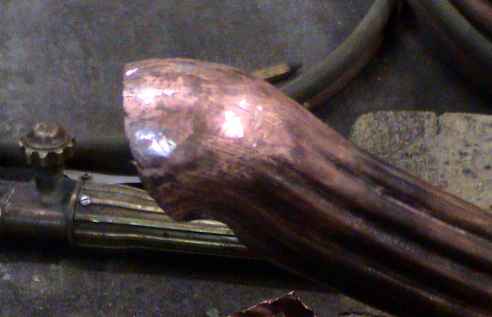

foruming the bend for the overflow

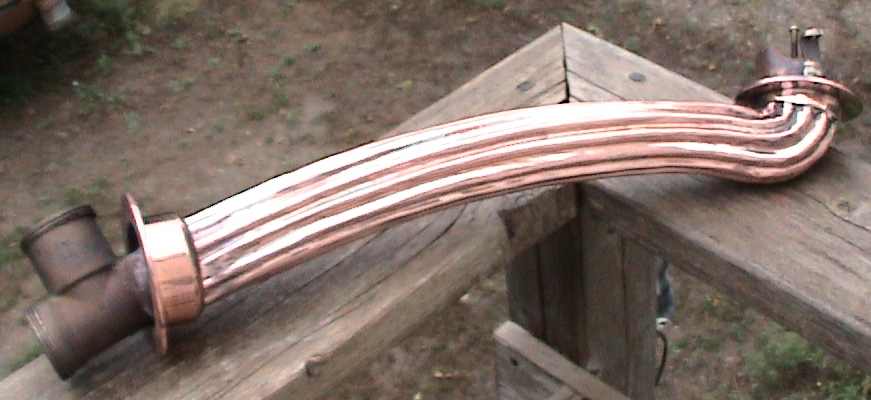

Progress shot (back side.)
