Landmark Center, Copper finial
The project is to make a new copper finial to replace one damaged in a storm.
forming the rings on the finial
|

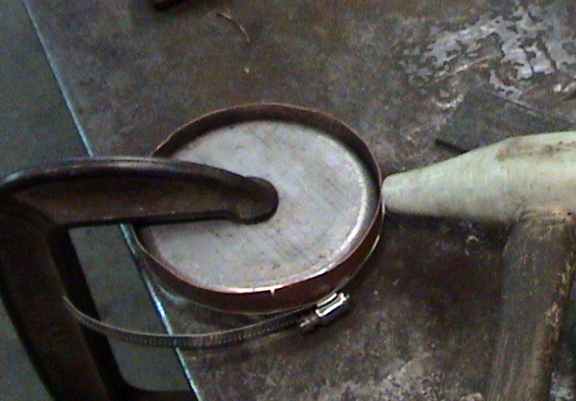

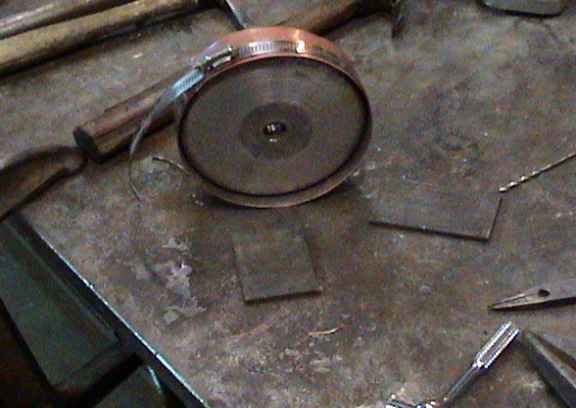

copper blank is wrapped around the hammerform mold and a spacer placed under the form to keep the form centered during the first pass.. |
|

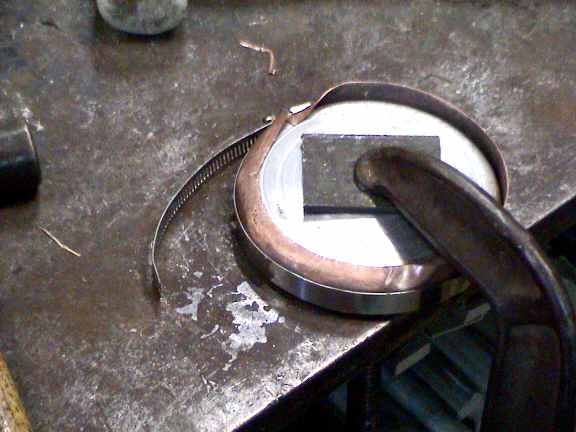

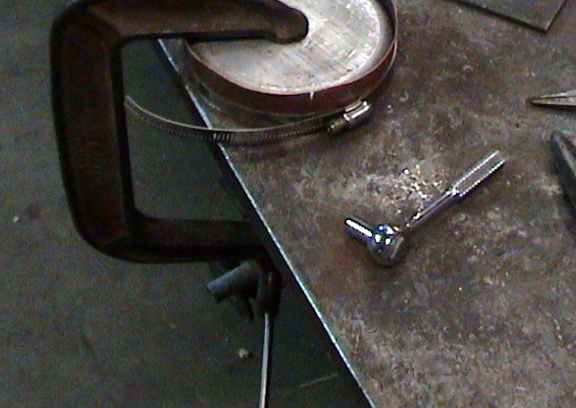

the blank is clamped to the mold and the mold to the table |
|

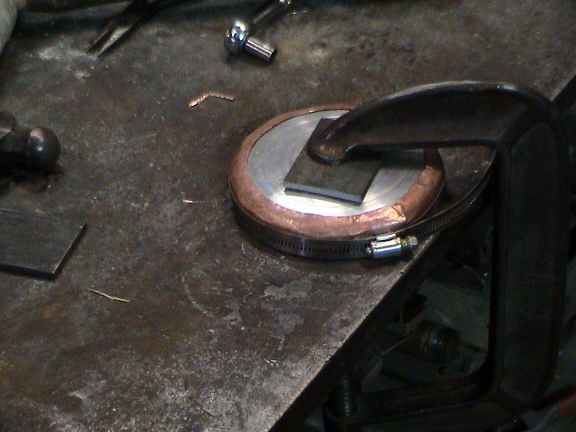

the curve of the ring is formed down with a soft hammer. |
|

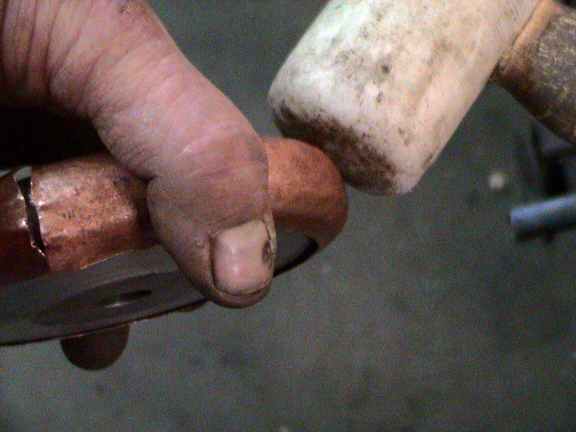

the curve of the ring is formed down with a soft hammer. 2. |
|
the curve of the ring is formed down with a soft hammer. 3. |
|
. |
|

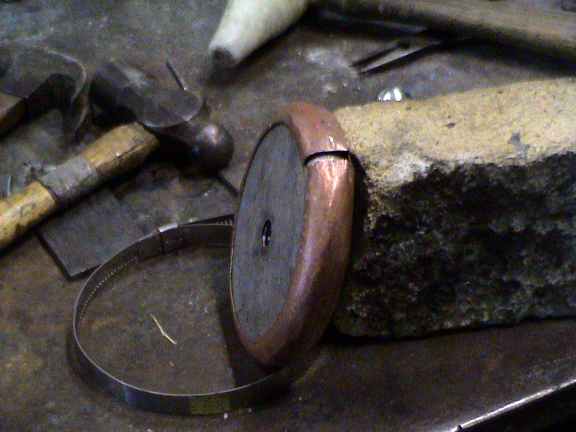

truing up the surface against the form to even out the area that was under the clamp band. |
|

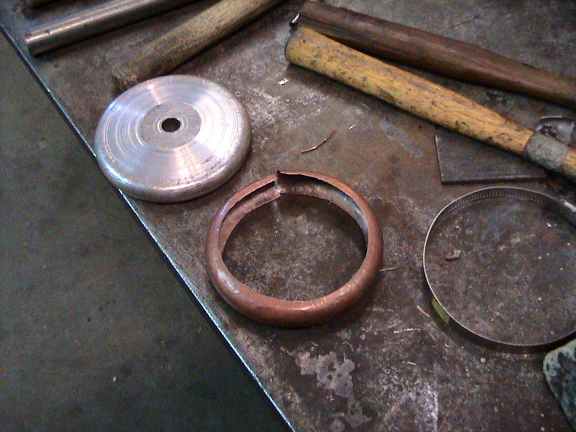

removed from the hammer form mold |
|

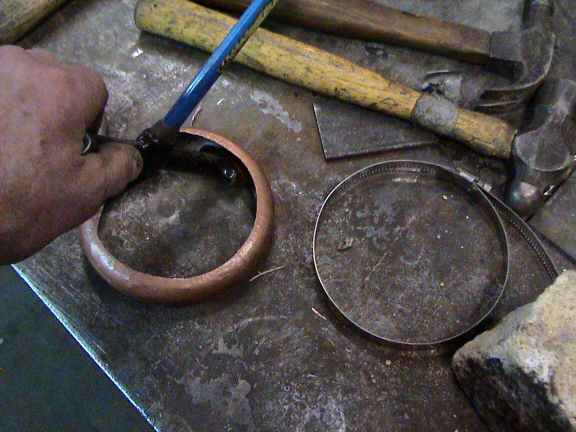

using a steel hammer to true the edge against the table. |
|

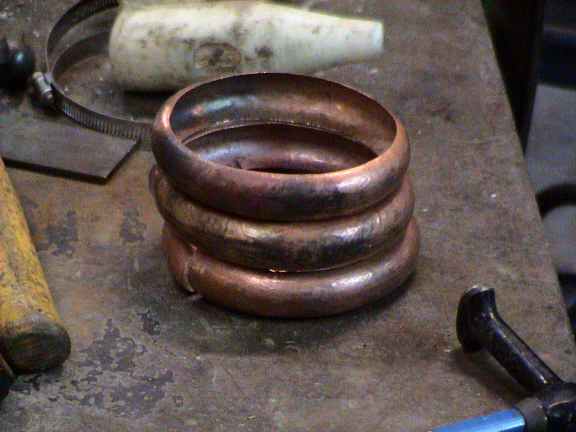

The welded rings. |
