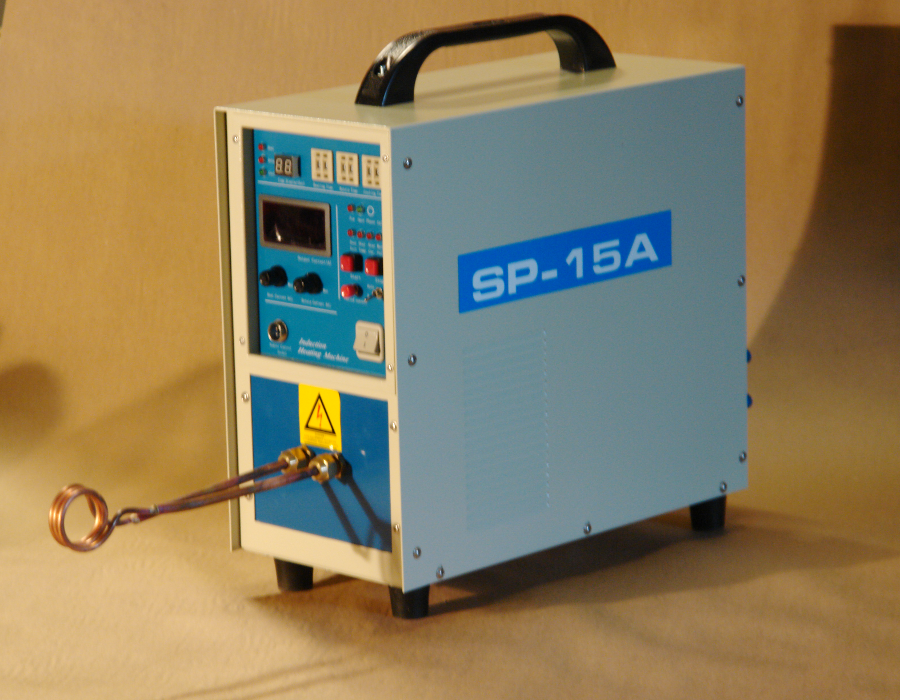

The SP-15A a 208-240v Single Phase Machine
|
|||||||||||||||||
 |
Specifications: ★ Input voltage : Single-phase 208-240V, 50 or 60 HZ
|
The SP-25A a Three Phase Machine in either 208-240v or 440v
With enough capacity to heat 2.5" bar stock.
|
Specifications: ★ 208-240V 3-phase, 50 or 60 HZ
|
,
★ : 440V 3-phase, 50 or 60 HZ
|
How do you compare these Machines?
Here are a couple videos heating the same 1.75" bar with an SP-15A and a 440v SP-25A.
| As you can see, the SP-15A altough rated at 1.5" heats the 1.75 bar quite effectively though the extra 21% mass slows it some and part of the heat has time to conduct away due to the longer heat time. | The 440v SP-25A on the other hand, heats the surface of the bar so quickly that it starts to melt, one would have to either keep the part moving under the coil or turn down the field to keep it from overheating like that. |
All off these machines may be custom configured for your specific use.
For example: This machine has a separate transformer unit to isolate excess heat from the electronics.
| |
|
Specifications: ★ : 440V 3-phase, 50 or 60 HZ
|
Water Coolers
These Machines require water heat exchange cooling units, we recommend Tig coolers with 15000 btu capacity for the small machine and 30,000 btu for the larger. We now handle DynaFlux tig coolers and can provide package deals.Accessories
Additional heating coils and metric flare nuts for making your own are available.(regular 5/16 " flex copper from the hdwe store will work with them)
Stock Items(SHIPPING COSTS for small parts ordered are added to your total by Paypal) | |
Supplies to make your own coils. | |
 | |
| Ceramic fiber fabric tube inulation for 1/4" copper tubing. 6mm | $1.59/ft |
| Ceramic Fiber fabric tube inulation for 5/16"to 3/8" copper tubing. 10 mm | $1.59/ft |
| Ceramic fiber insulating tape on 3 inch core |
10mm tape $67.00 20mm tape $89.00 |

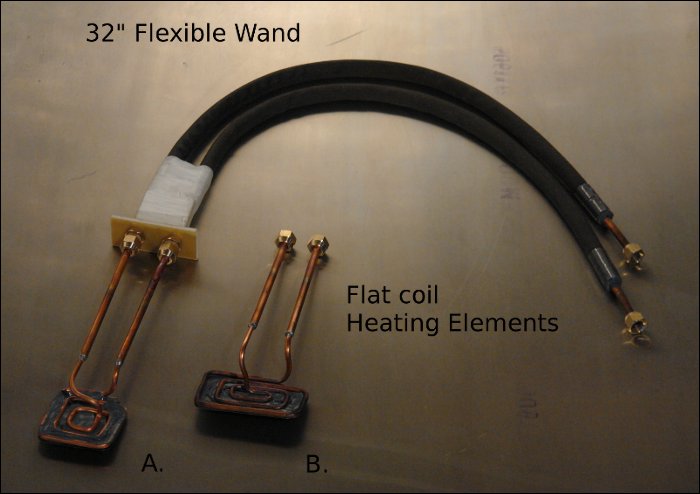

4x2.5 coil with mica/ceramic sheet insulator
2"x3" coil with mica/ceramic sheet insulator
Replacement Foot Pedal with cord and connector.
Induction Heating
Induction Heating is a time tested way of heating metals and other things.It is used for, forging, melting, brazing, heat treating, and other things, even cooking.
It takes changing magnetic fields, like those that make a transformer work and applies them over and over again at high frequency to generate low voltage high amperage currents which exceed the conductivity of the part being heated. The electrical resistance in the part causes it to heat up when the generated current tries to flow. It is very good for spot heating. It has no flame and can be used in an inert atmosphere, making it ideal for heating, brazing, melting, forming materials without the formation of slag or scale. .
Warranty
As Grant Sarver and Larry Langdon have done before me, we guarantee these machines under normal use for replacement parts and labor for one year from purchase .We are not currently importing These Machines, sorry
the parts listed above are still in stock.*** Questions?? Comments!! - Email me gene (at) mettleworks.com Thanks for your feedback. |
